Aluminum Expanded Metal Manufacturer in China

YueChu Metal is an aluminum expanded metal manufacturer and supplier in China. We supply custom aluminum expanded metal sheets and panels with project-specific openings, strand dimensions and finishes for distributors, contractors, fabricators and OEM buyers.

Custom openings & panel sizes
1060 / 3003 / 5052 / 6061 alloys
Mill, anodized, powder & PVDF finishes
Export packing for project orders

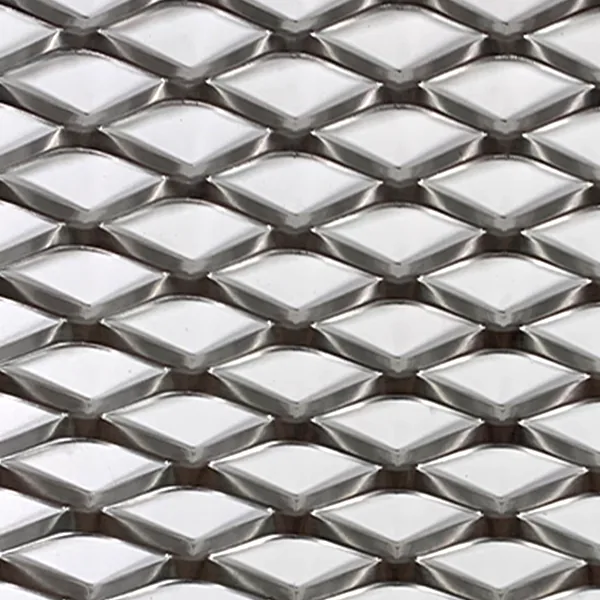

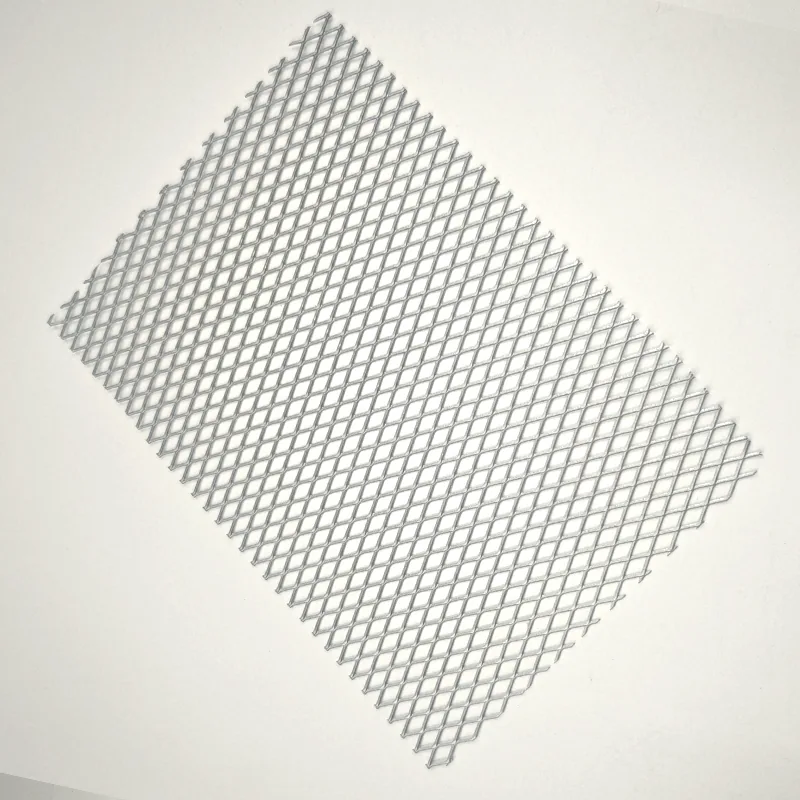

Silver aluminum expanded metal close-up showing raised diamond strands — Raised Aluminum Expanded Metal Detail

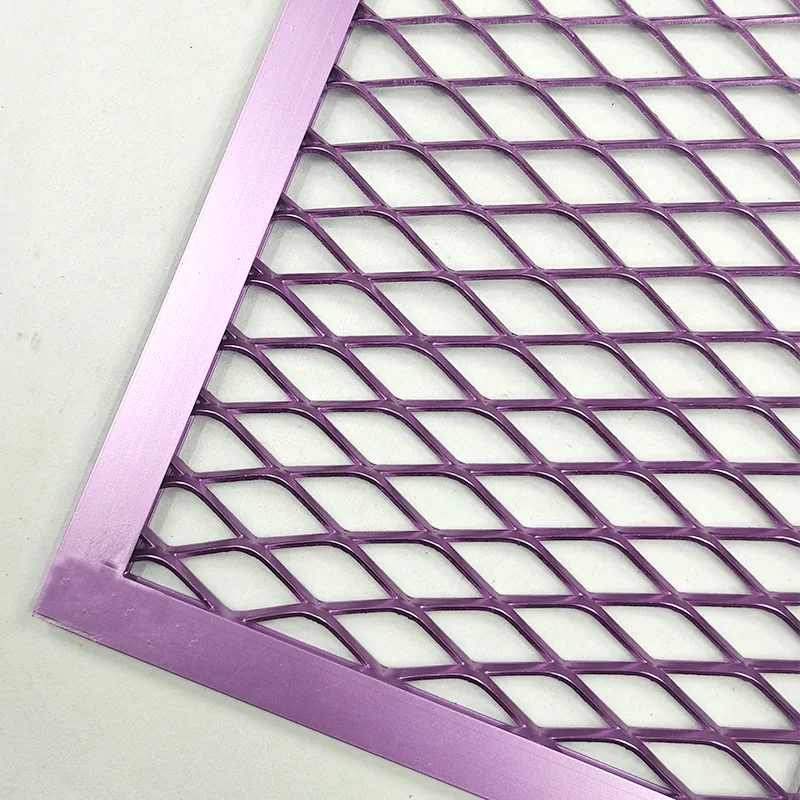

Purple and gold framed aluminum expanded metal panels with decorative opening patterns

Yellow, green and purple raised aluminum expanded metal samples

Purple, yellow and green aluminum expanded metal diamond panels

Request a Quote View Product Specifications

Custom product supply

Custom Aluminum Expanded Metal Supply

Lightweight architectural and industrial mesh with custom alloys and finishes

YueChu Metal manufactures custom aluminum expanded metal sheets for facades, ceilings, decorative screens, sunshade panels, ventilation panels, and lightweight industrial applications.

Choose the alloy, opening pattern, panel size, and finish for your architectural, fabrication, or OEM project. Drawings and samples are welcome for fast quotation review.

Aluminum Expanded Metal Specifications

Available aluminum expanded metal sheet specifications. Choose diamond pitch, base metal thickness and strand width, with standard or custom sheet dimensions.

For accurate quotation and production, expanded metal mesh should be measured by SWD (Short Way of Diamond), LWD (Long Way of Diamond), strand width, sheet thickness, sheet width, and sheet length. These expanded metal mesh specifications directly affect opening size, weight, strength, ventilation rate, and application performance.

When sending an inquiry for aluminum expanded metal, include these measurements for faster quotation and production.

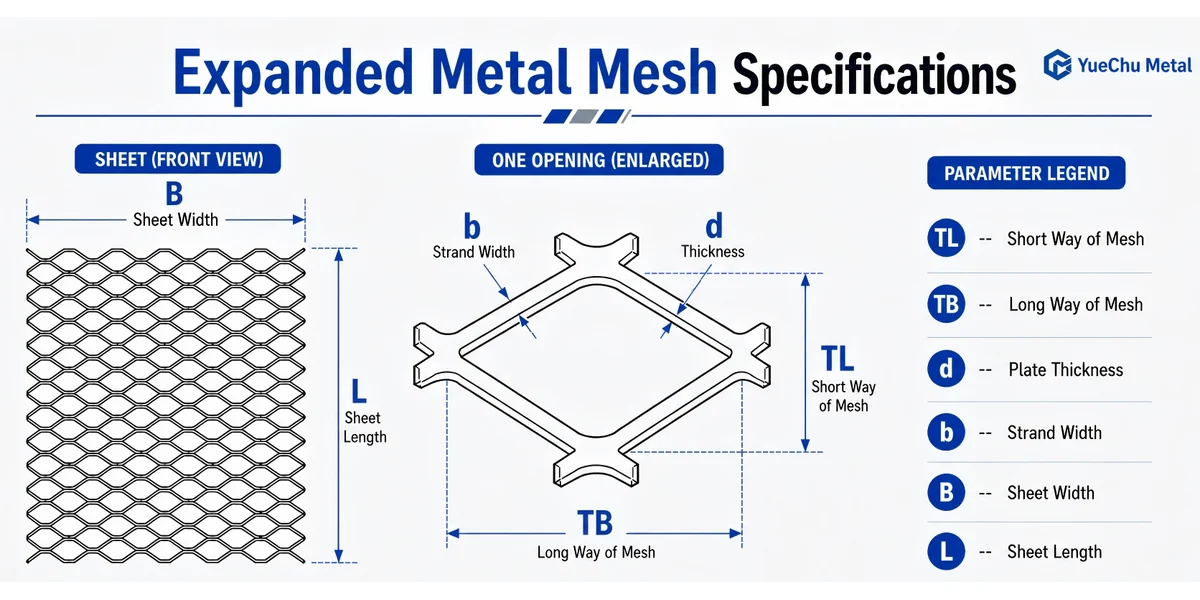

YueChu Metal expanded metal mesh specification diagram showing sheet width B, sheet length L, strand width b, thickness d, short way TL and long way TB — Expanded metal sheet and enlarged opening with dimension labels.View Full-Size Diagram (opens in a new tab)

Pitch ≠ clear opening. Diagram labels: TL = short way, TB = long way, b = strand width, d = metal thickness, B = sheet width and L = sheet length. Specify whether the short and long dimensions on your drawing are bond-center pitches (SWD / LWD) or clear openings (SWO / LWO).

LWD × SWD: Long × short way of the diamond pitch, measured between corresponding bond centers.
Strand width & thickness: Strand width is w; base metal thickness is t. Raised overall thickness T is a separate dimension.
SWO / LWO: The short and long dimensions of the clear opening between strands; these are smaller than the corresponding diamond pitches.
Open area & sheet size: Open area is the percentage occupied by openings. Sheet size is the overall width and length; specify diamond orientation separately.

SWD and LWD represent the short way and long way of the diamond pitch, measured center-to-center between corresponding bond centers. These dimensions are mesh pitch values, not clear opening dimensions. Actual clear openings depend on strand width and mesh geometry. Mesh dimensions, base metal thickness and strand width are in mm; sheet size is in m.

Aluminum expanded metal sheet specifications
SWD (mm)	LWD (mm)	Base metal thickness (mm)	Strand width (mm)	Sheet size (m)
20	40	2–3	2–5	1.2 × 2.4 · Custom sizes available
20	60	2–3	2–5	1.2 × 2.4 · Custom sizes available
25	50	2–3	2–8	1.2 × 2.4 · Custom sizes available
30	60	2–3	2–8	1.2 × 2.4 · Custom sizes available
30	80	2–4	2–8	1.2 × 2.4 · Custom sizes available
40	100	2–4	2–15	1.2 × 2.4 · Custom sizes available
40	120	2–4	2–15	1.2 × 2.4 · Custom sizes available
50	120	2–4	2–20	1.2 × 2.4 · Custom sizes available

Other mesh opening sizes can also be custom made. Send your required dimensions or drawing for a quotation.

Send a pattern or drawing for quotation

Continuous coil supply

Aluminum Expanded Metal Coils

YueChu Metal supplies aluminum expanded metal in coil form for applications requiring continuous material processing, custom cutting and downstream fabrication.

Aluminum expanded metal coils are available in different widths, thicknesses and mesh pitch specifications to meet various industrial and fabrication requirements. If your drawing refers to an aluminum expanded mesh roll or aluminum expanded metal roll, specify the coil dimensions and mesh geometry below.

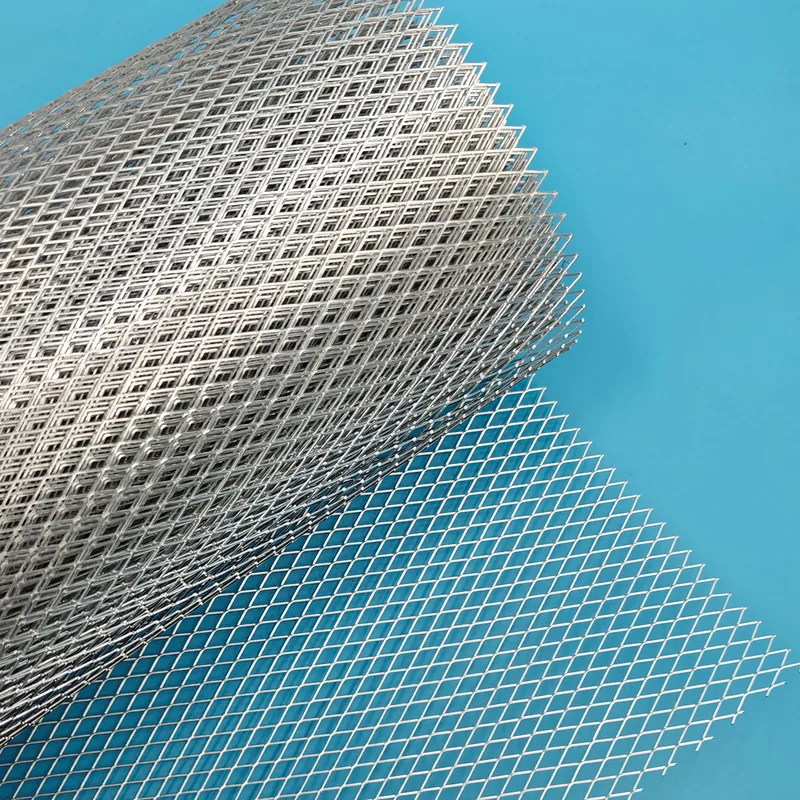

Full aluminum expanded metal coil with diamond mesh on a blue surface — Aluminum expanded metal coil

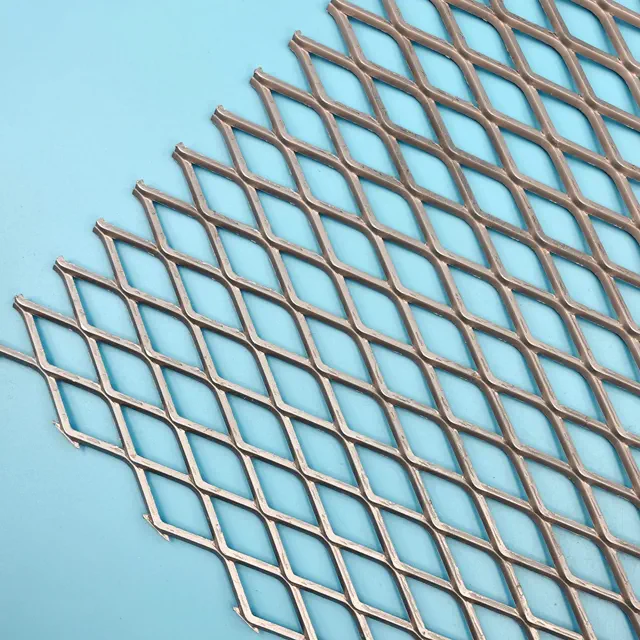

Close-up of diamond openings and strands on an aluminum expanded metal roll — Diamond mesh detail

End view of an aluminum expanded metal coil showing concentric mesh layers — Coil end & mesh layers

Several aluminum expanded metal coils standing together in the workshop — Aluminum coils in the workshop

Coil Specifications

Available aluminum expanded metal coil ranges
Specification	Available Range
Coil Width	100–1500 mm
Sheet Thickness	0.2–2.0 mm
Standard Coil Length	10–30 m
Maximum Coil Length	Up to 300 m
Product Form	Coil

Mesh Pitch (SWD × LWD)

Center-to-center pitch (mm) — not clear opening

SWD (mm)	LWD (mm)
0.5	1.0
0.8	1.6
1.0	2.0
2.0	4.0
3.0	6.0
4.0	8.0

SWD (mm)	LWD (mm)
5.0	10.0
6.0	12.0
8.0	16.0
10.0	20.0
15.0	30.0

SWD: Short Way of Diamond. LWD: Long Way of Diamond. Strand width: the width of the solid metal strand between openings. Clear opening: the unobstructed space between strands. See the expanded metal measurement guide when preparing a drawing.

Custom Aluminum Expanded Metal Coil Supply

For a quotation, please provide your required aluminum alloy, sheet thickness, SWD pitch, LWD pitch, strand width, coil width, coil length and order quantity.

Contact YueChu Metal to discuss your aluminum expanded metal coil requirements.

Request an Aluminum Coil Quote

Product overview

What Is Aluminum Expanded Metal?

Aluminum expanded metal is produced by slitting and stretching aluminum sheet into a continuous diamond opening pattern. The resulting aluminum expanded metal mesh provides low weight, ventilation and visibility without welded joints. Corrosion performance depends on the alloy, finish and exposure conditions.

YueChu Metal supplies custom aluminum expanded metal sheets for facades, ceilings, decorative screens, sunshades, infill panels, ventilation panels and lightweight industrial fabrication. Compare product families in our expanded metal overview.

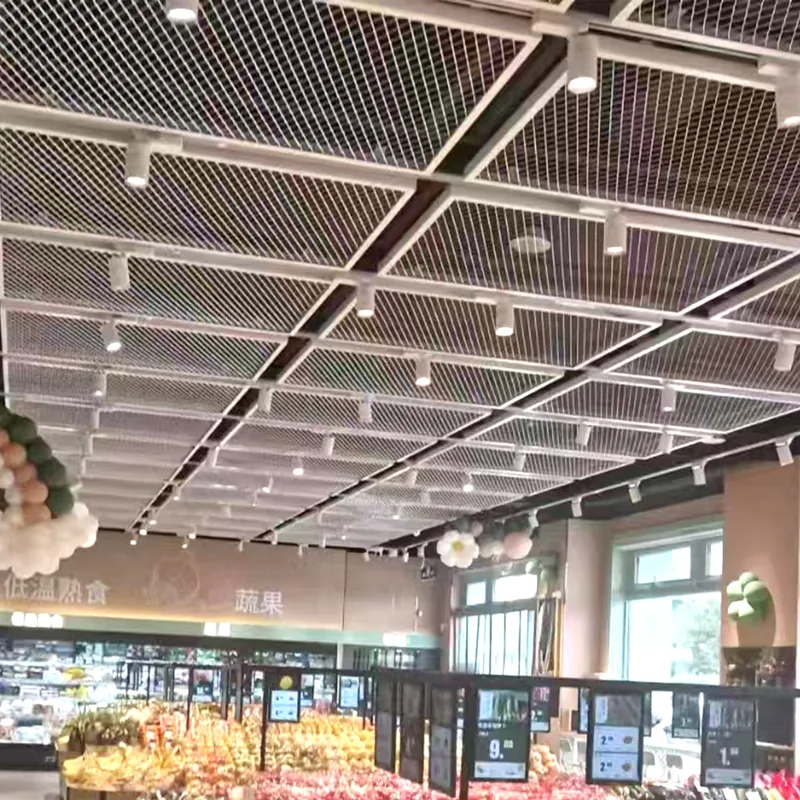

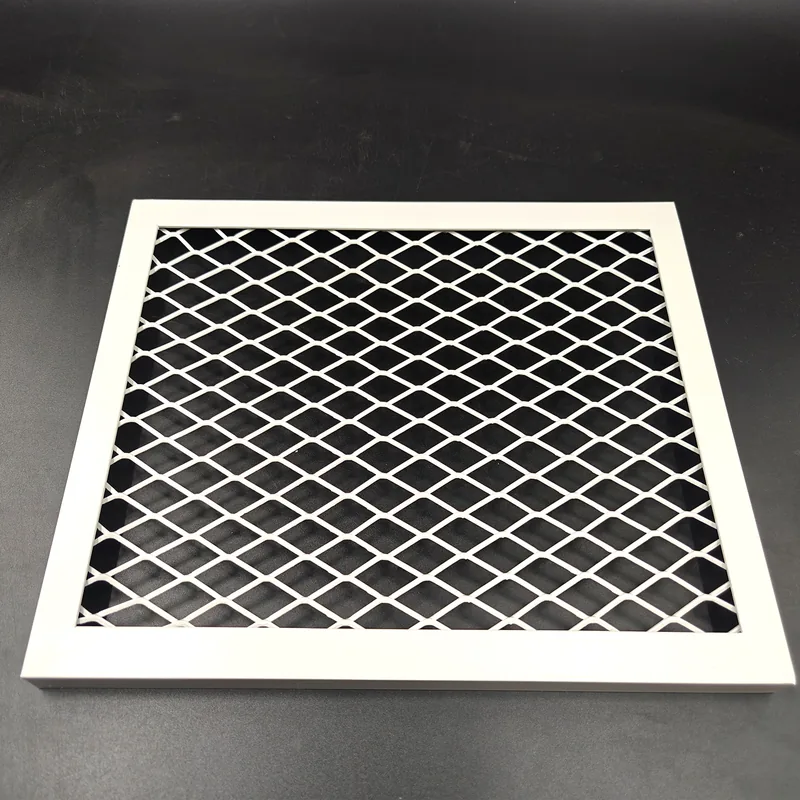

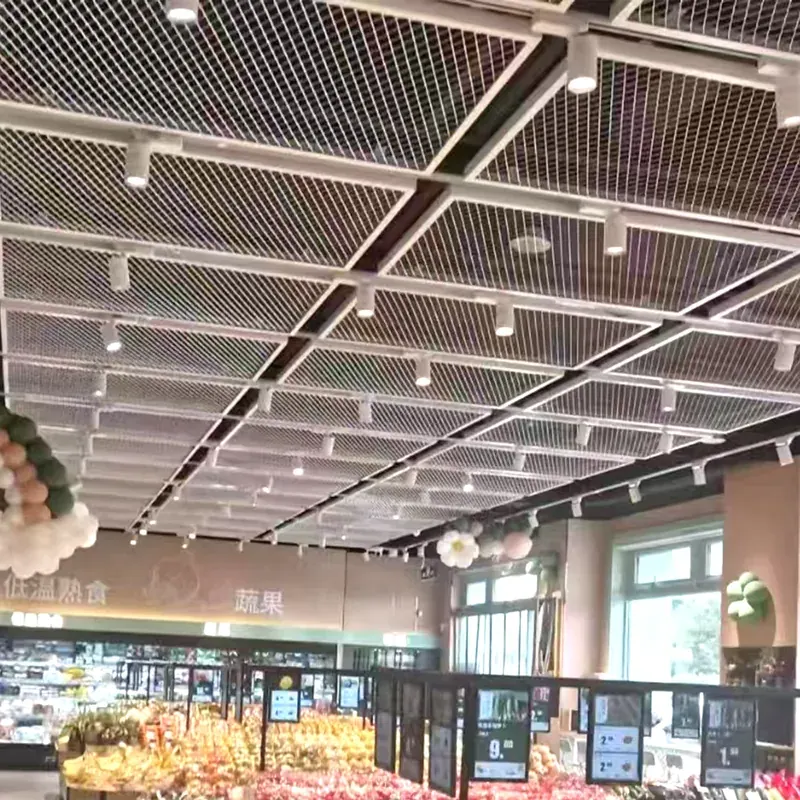

Applications of Aluminum Expanded Metal

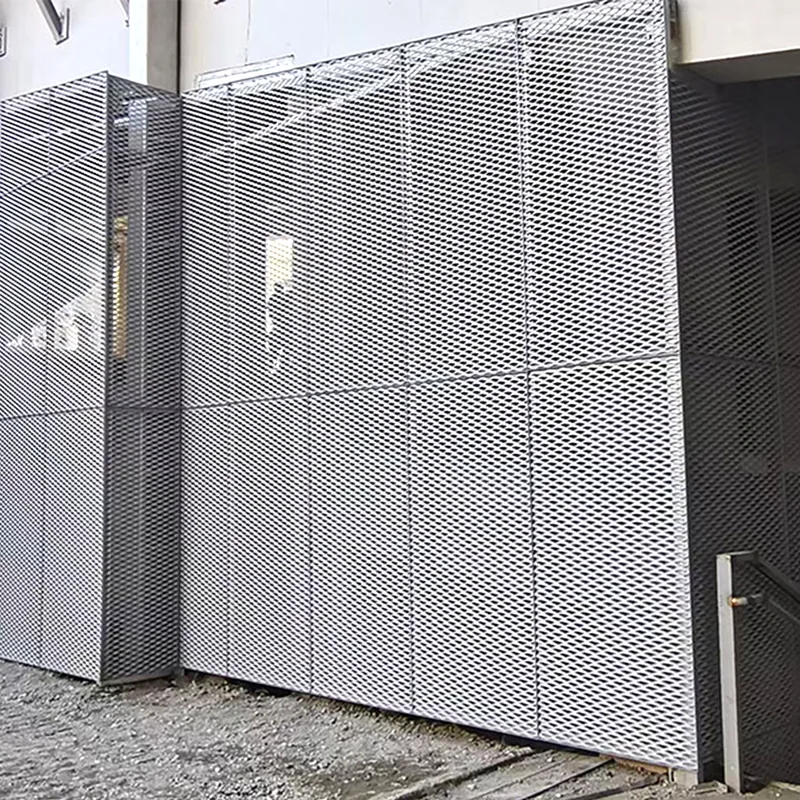

An aluminum expanded metal facade or sunshade requires agreement on panel geometry, support details, alloy and finish. Interior aluminum expanded metal panels are also used for ceilings, partitions and decorative screens.

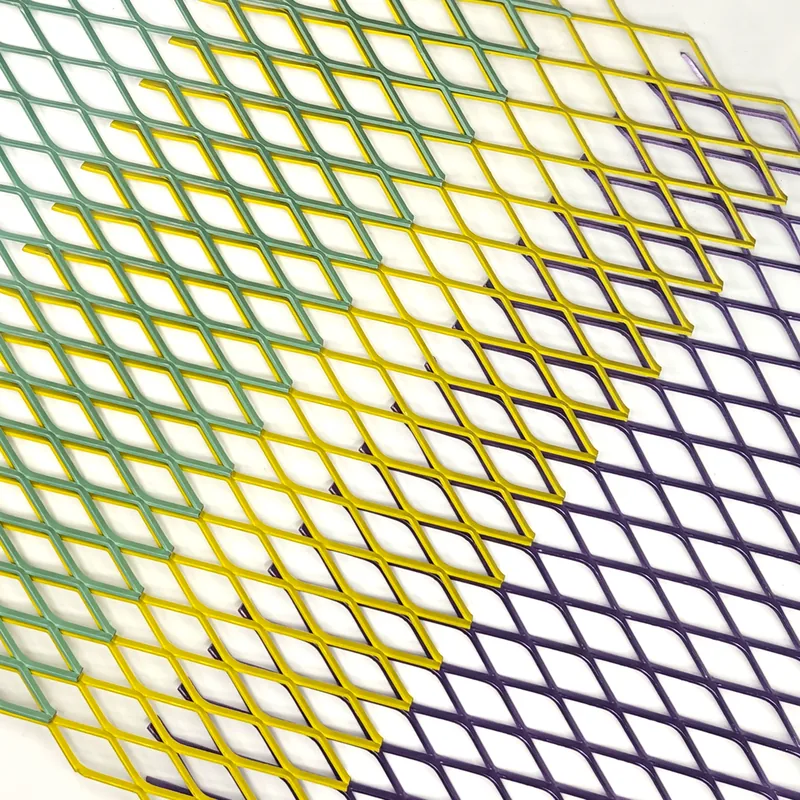

Surface Finishes for Aluminum Expanded Metal

Options for review include mill finish, anodized aluminum expanded metal, powder coated aluminum expanded metal and PVDF finishes. Confirm color, exposure, coating requirements and treatment after fabrication before ordering.

Alloy selection

Which Aluminum Alloy Is Suitable for Expanded Metal?

The selection of aluminum alloy for expanded metal depends on the required mechanical properties, forming requirements, corrosion exposure and final application.

Common alloy options include:

1060 Aluminum: Commercially pure aluminum for applications where high alloy strength is not the primary requirement.
3003 Aluminum: An aluminum-manganese alloy commonly considered for general fabrication and architectural applications.
5052 Aluminum: An aluminum-magnesium alloy considered for applications requiring a combination of strength and corrosion resistance.
6061 Aluminum: A heat-treatable aluminum alloy used in applications requiring higher mechanical strength.

The suitable alloy and temper should be confirmed according to the forming process and project requirements. When requesting 1060, 3003, 5052 or 6061 aluminum expanded metal from YueChu Metal, include the required alloy and temper for review; a grade name alone does not confirm that a particular mesh geometry can be manufactured.

Surface profiles

Difference Between Raised and Flattened Aluminum Expanded Metal

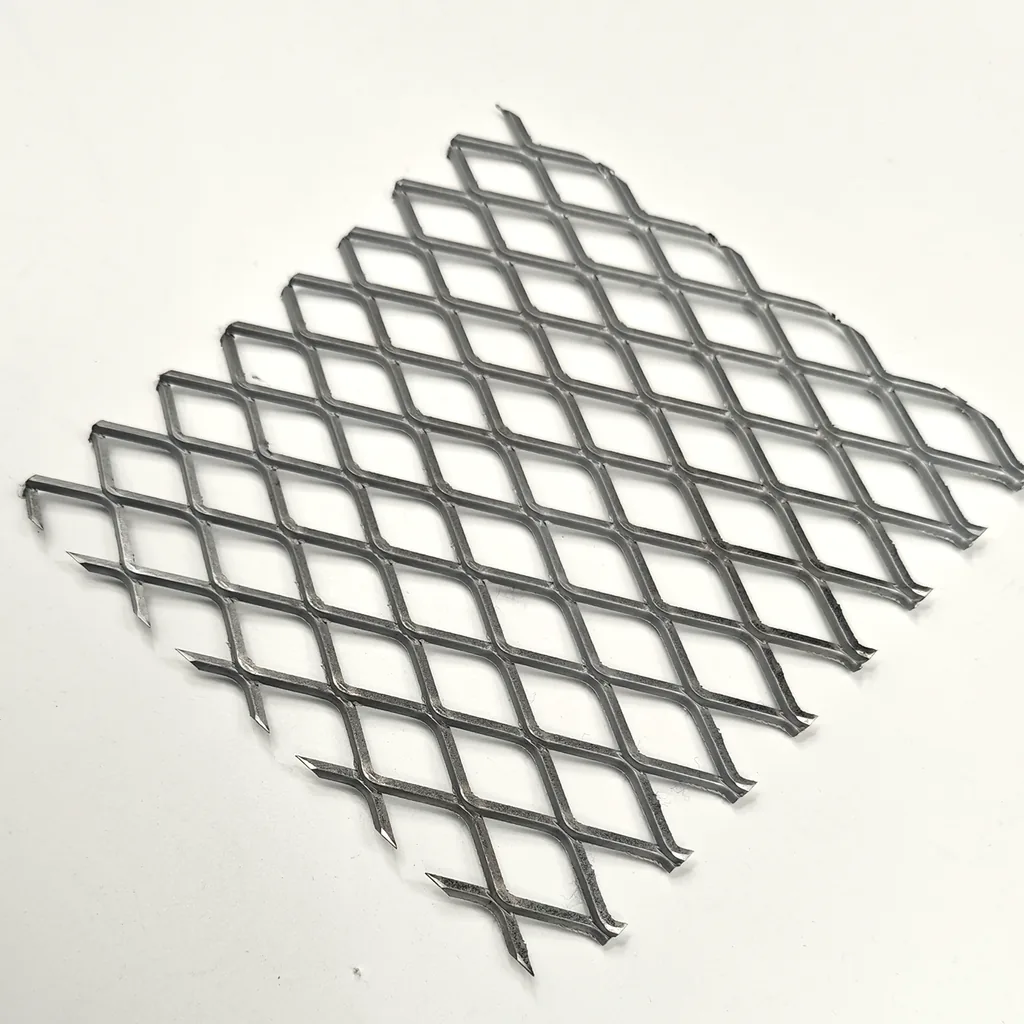

Raised aluminum expanded metal

Raised aluminum expanded metal retains the angled strands formed during slitting and stretching.

Flattened aluminum expanded metal

Flattened aluminum expanded metal is rolled after expansion to produce a lower, smoother profile.

Flattening can change strand dimensions and opening geometry. Specify the required profile and finished dimensions; base sheet thickness and overall raised mesh thickness are different measurements. Strength and stiffness depend on alloy, temper, strand geometry, orientation and support conditions.

Use the expanded metal weight and open area calculator for preliminary comparison, then confirm the final specification with YueChu Metal.

Specification & ordering

What Information Is Needed to Order Aluminum Expanded Metal?

For an aluminum expanded metal quotation, send YueChu Metal the alloy and temper, raised or flattened profile, diamond pitch, strand dimensions, finished sheet or panel size, finish and quantity.

Alloy and temper: Identify the grade and any required material documentation.
Mesh geometry: Give SWD and LWD, strand width and base metal thickness. Identify whether dimensions are bond-center pitches or clear openings.
Finished panels: Specify width, length, diamond orientation, edge conditions, tolerances and any cutting or framing details.
Finish and exposure: Include mill finish or coating type, color reference and intended environment.
Order and delivery: State quantity, application, packing needs and destination port or country.

Attach a drawing or reference sample when available. A market style number alone is not a complete aluminum expanded metal sheet specification.

Expanded Metal Manufacturing & Customization

A slit-and-stretched sheet, configured around your project.

Slitting and stretching turn solid sheet into connected mesh. Raised mesh retains angled strands; rolling creates a smoother, flattened profile. Cutting, forming and finishing follow your agreed specification.

Custom options to discuss

Material and grade
SWD / LWD and clear openings
Strand width and thickness
Raised or flattened profile
Sheet size and diamond direction
Coating, cutting and fabrication

See the real manufacturing process

Production equipment, workshop areas and incoming material stock.

Expanded metal production line with machines, wrapped material rolls and packed materials — **Factory workshop**Equipment, rolls and packed materials in the workshop.

Expanded metal press line and sheet processing equipment — **Production equipment**Sheet processing and forming equipment.

YueChu Metal factory workshop with expanded metal production machines and finished rolls — **Workshop environment**Production equipment and finished stock.

Metal coils and sheet stock stored in the raw material area — **Raw material stock**Coils and sheet materials prepared for production.

Expanded metal forming machine feeding sheet through the production line — **Forming process**Sheet passes through the expanded metal machine.

Close view of expanded metal mesh leaving the production machine — **Production detail**Expanded metal mesh at the machine exit.

Discuss Your Custom Requirements View Factory & Production Photos

Quality Control & B2B Supply Support

Agree on material, dimensions, tolerances and inspection requirements before production.

Approved drawings or samples help keep repeat orders consistent. Include inspection records, material documents and packing or identification requirements in your inquiry.

Key inspection considerations

Base material and grade
Diamond pitch and clear openings
Strand width and metal thickness
Sheet dimensions and flatness
Surface finish and visible defects
Packaging and product identification

Dimension inspection for your specification

Measuring tools and dimensional checks for expanded metal products.

Digital caliper checking expanded metal strand thickness — **Thickness check**Digital caliper measurement of strand profile.

Digital caliper checking expanded metal mesh opening dimensions — **Dimension check**Mesh opening measurement.

Expanded metal mesh quality inspection with a measuring instrument — **Opening check**Inspection of the expanded opening.

Profile checkVisual and dimensional profile review.

Packing and loading support

Protected bundles, export packing and shipment preparation.

Stacked expanded metal sheets with protective plastic film prepared for packaging — **Sheet packaging**Protected expanded metal sheets.

Metal sheet bundles wrapped and secured for transport — **Wrapped bundles**Sheet bundles secured for handling.

Expanded metal bundles protected with wood frames and straps — **Wood-frame packing**Long bundles supported by frames.

Expanded metal bundles loaded inside a shipping container — **Container loading**Bundles arranged for ocean shipment.

Wooden cases and wrapped expanded metal rolls loaded in a container — **Loading detail**Cases and rolls secured in the container.

Wrapped expanded metal rolls loaded on a delivery truck — **Dispatch**Finished goods prepared for delivery.

Available Supply Forms

Sheets

Standard or custom sheet sizes.

Panels

Cut panels, with framing by agreement.

Coils

View aluminum coil specifications

Cut-to-Size Parts

Shapes and dimensions to your drawing.

Confirm dimensions, packing, MOQ and delivery requirements for your specification. View Inspection Photos ·View Packing & Shipment Photos

Buyer questions

Aluminum Expanded Metal FAQ

What aluminum alloys are available?

Common options include 1060, 3003, 5052, and 6061 aluminum. Other alloys can be reviewed according to strength, forming, corrosion resistance, and project requirements.

Can aluminum expanded metal be used outdoors?

Yes. Aluminum has good corrosion resistance and is widely used outdoors. Anodized, powder coated, or PVDF coated finishes can provide additional protection and the required architectural appearance.

What surface finishes are available?

Available finishes include mill finish, anodized, powder coated, and PVDF coated surfaces. Custom colors and project-specific finish requirements can be reviewed before production.

Is aluminum expanded metal suitable for architectural projects?

Yes. Its low weight, corrosion resistance, ventilation, and decorative appearance make it suitable for facades, ceilings, screens, sunshades, infill panels, and ventilation panels.

What information is needed for a quotation?

Please send the alloy, thickness, SWD, LWD, strand width, panel dimensions, finish or color, quantity, application, and destination port. Drawings or photos help us quote faster.

Can you supply aluminum expanded metal in coils?

Yes. YueChu Metal supplies aluminum expanded metal coils for continuous processing, custom cutting and downstream fabrication. Send your aluminum alloy, mesh pitch, strand width and required coil dimensions for a quotation.

Drawings & specifications welcome

Request a Quote for Aluminum Expanded Metal

Tell us your alloy, opening pattern, sheet thickness, panel size, finish, color, quantity, and application. Our team will help confirm a suitable specification for your project or bulk order.

Before sending a sample or drawing, use the expanded metal measurement guide to distinguish diamond pitch, clear opening and metal thickness.

Request a Quote Email Drawings & Requirements

Material: Aluminum 1060, 3003, 5052, 6061, and custom grades on request
Opening Pattern: Diamond opening, raised type, or flattened type
Surface Treatment: Mill finish, anodized, powder coated, PVDF coated

Made to your specification · Request a quotation

Technical DataProduct parameters & construction details

Material: Aluminum 1060, 3003, 5052, 6061, and custom grades on request
Opening Pattern: Diamond opening, raised type, or flattened type
Surface Treatment: Mill finish, anodized, powder coated, PVDF coated
