Twill Weave Stainless Steel Wire Mesh

How it is woven

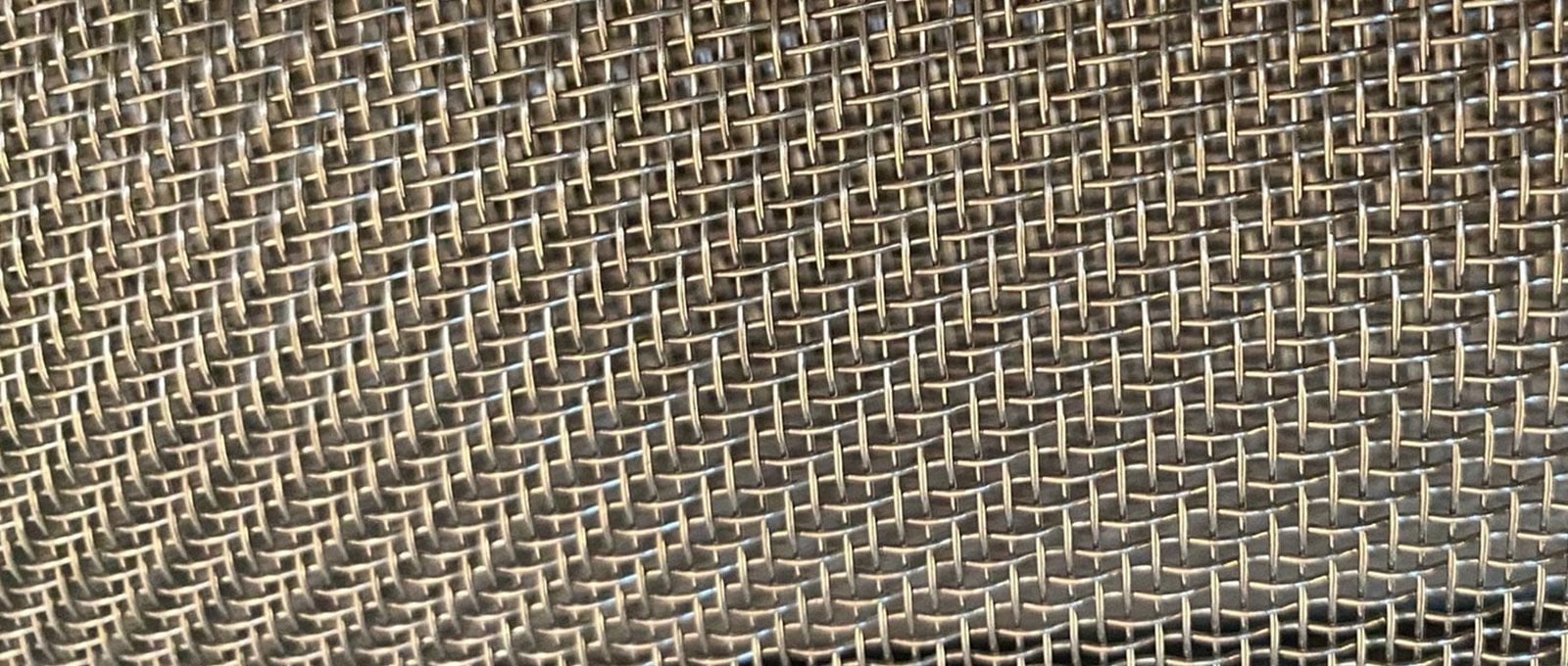

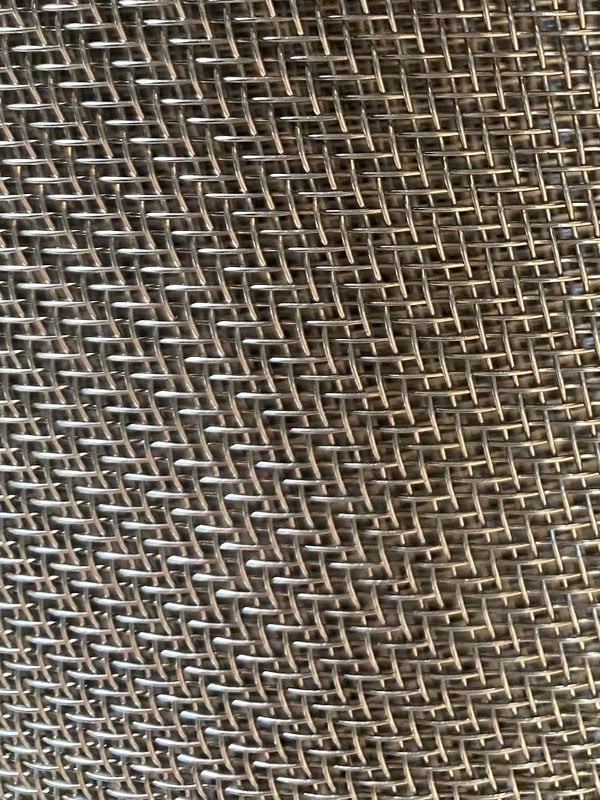

Two wires over, two wires under

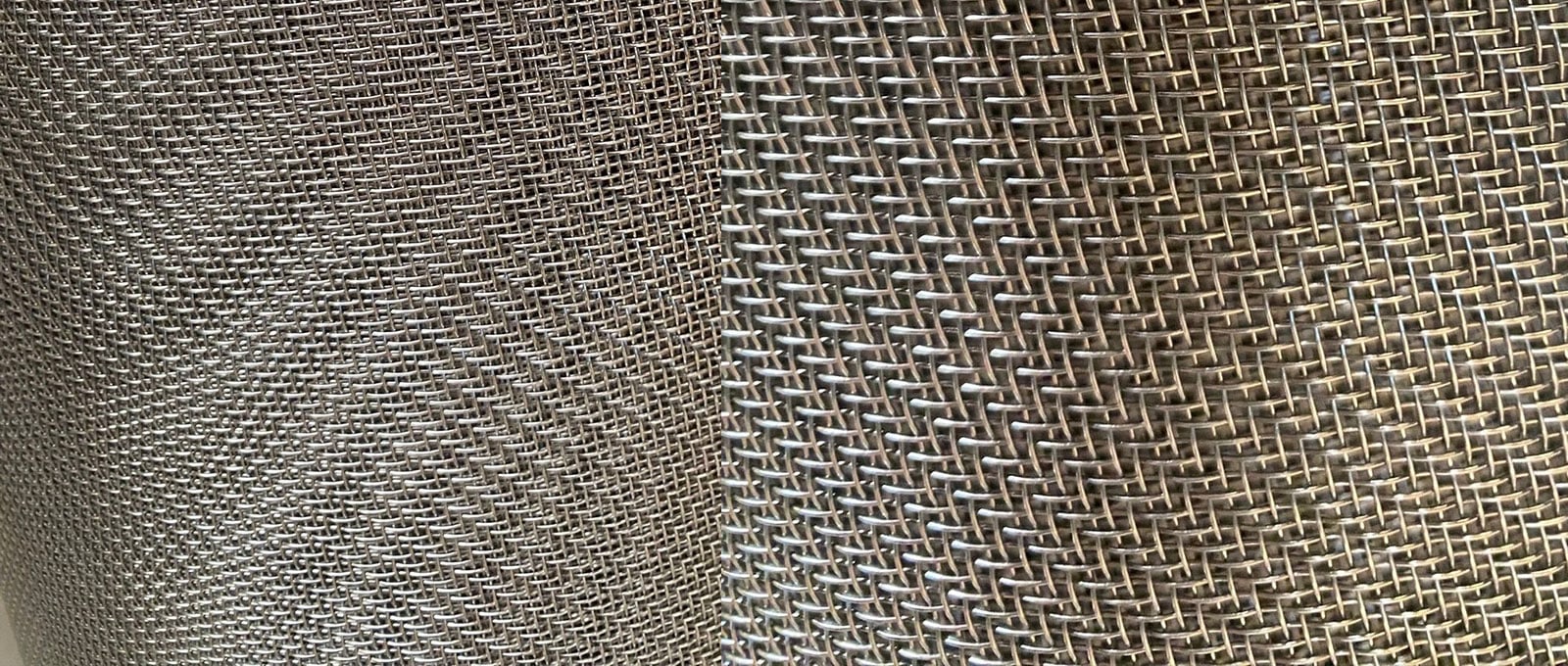

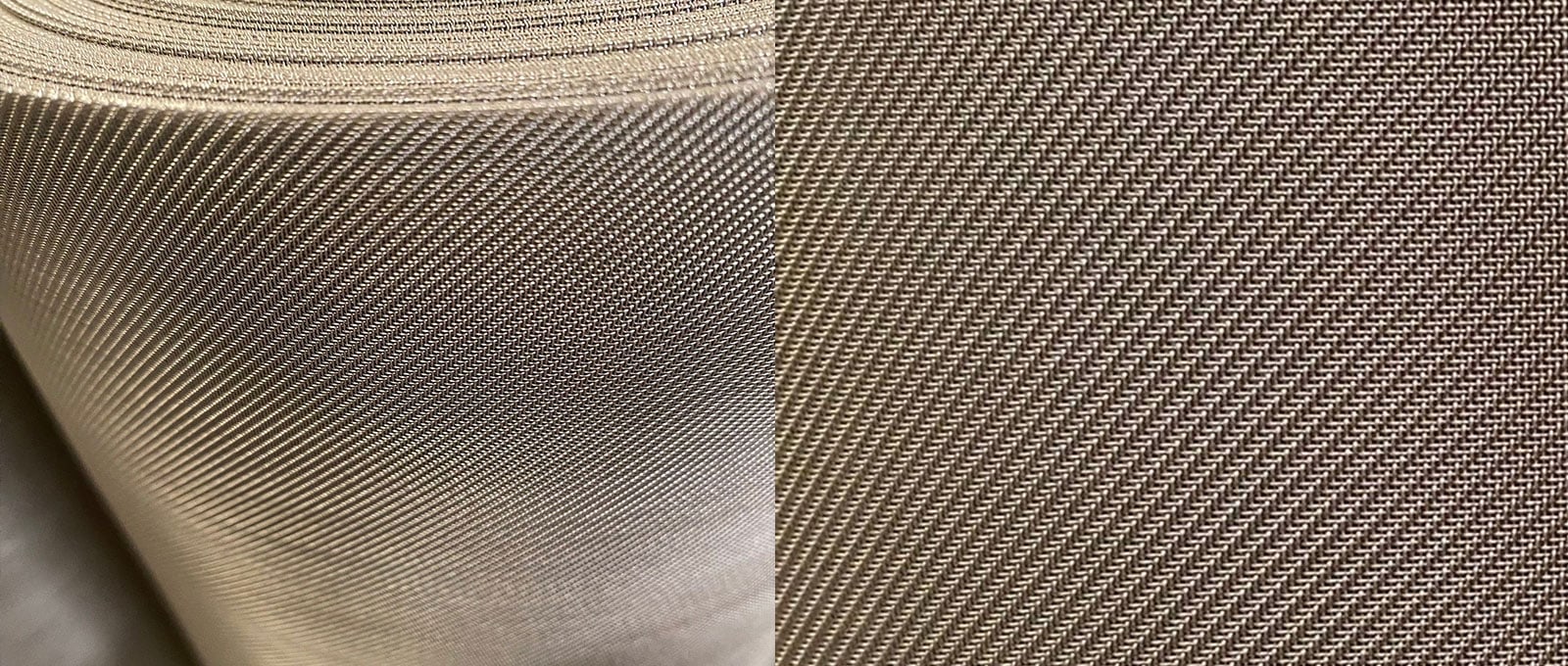

The 2/2 interlacing creates offset intersections and a characteristic diagonal pattern. With equal mesh counts and wire diameters in both directions, the mesh has nominal square openings.

Twill construction can accommodate relatively heavier wire at finer mesh counts. The useful opening, open area and handling characteristics depend on the complete specification—not the weave name alone.

Warp

Wires running along the weaving direction

Weft

Wires crossing the warp

2/2 pattern

Two crossing wires over, two under

Specification-based sourcing

Specify your stainless steel twill weave mesh

Send a complete mesh specification or your target opening and application. We will review the weave combination before quotation. A plain-weave reference size is not automatically a twill-weave size.

Mesh range, dimensional tolerances, stock, MOQ and lead time are confirmed for each inquiry. Submit your required combination for confirmation before ordering.

Use the square woven wire mesh size chart to compare wire diameter and nominal opening. The chart is a geometry reference; confirm the twill construction separately rather than treating each pictured sample as twill mesh.

Choose the right construction

Twill vs plain vs twill Dutch weave

A weave pattern alone does not establish strength, pressure capacity or filtration performance. Compare the actual geometry, material and operating conditions.

Application review

Match the mesh to the process

These are potential use cases for specification review, not performance guarantees. Include your process conditions so the mesh and its support arrangement can be assessed together.

Fine screening & sieving

Review aperture, wire diameter and support conditions for particle sizing and separation.

Filtration & filter support

Define the medium, target retention, flow and pressure conditions before selecting a mesh.

Equipment screens

Specify the opening, finished dimensions and mounting method for equipment integration.

OEM mesh components

Submit a drawing for cut sheets, strips or discs; confirm edge and assembly requirements.

For corrosive media or demanding cleaning cycles, include temperature, chemicals and exposure conditions. Review SS304 vs SS316 before choosing the grade.

Wholesale & OEM requirements

Rolls, cut sheets and drawing-based pieces

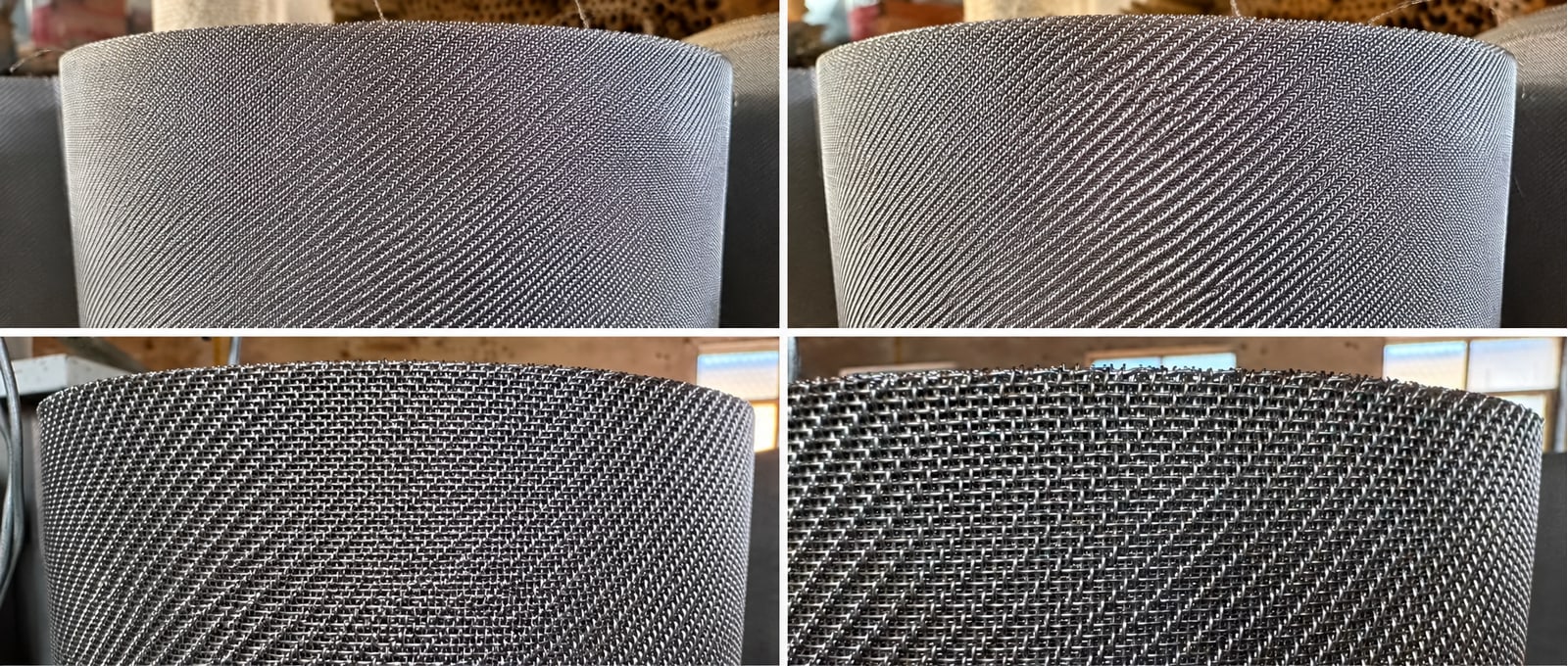

• Rolls and slit rolls. Specify width, length, quantity and edge condition.
• Sheets and cut pieces. Send finished dimensions or a drawing, with quantity per size.
• OEM purchasing. Identify the assembly method, tolerances and repeat-order requirements.

Cutting and fabrication feasibility depend on the selected mesh. Confirm material, dimensions and packing in the quotation before issuing a purchase order.

Export purchasing checklist

From mesh requirement to a clear RFQ

YueChu Metal is a China-based supplier. Buyers in the United States, Canada, the UK, Germany, Spain and Australia can use the same technical checklist; shipping and documentation are reviewed for the destination and order.

1. Define the specification.

   Confirm 2/2 twill square mesh, exact stainless steel grade, mesh count, wire diameter and target opening.

2. Agree inspection and packing.

   Identify aperture and wire checks, dimensions, material documentation, roll identification and protection needed for transport. Document availability must be confirmed; certification is not assumed.

3. Confirm the commercial terms.

   Provide quantity, destination country and postal code or port, requested delivery terms and required date. Confirm price unit, MOQ and lead time in the offer.
