SS304 · T304 · 304L · Custom manufacturing
304 Stainless Steel Wire Mesh Manufacturer & Supplier
YueChu manufactures 304 stainless steel wire mesh for industrial screening, filtration, guards and OEM fabrication. Specify woven or welded construction, mesh count or opening, wire diameter, finished dimensions and quantity for an export quotation. SS304, T304 and 304L stainless steel wire mesh options are reviewed against the requested application and documentation.
- Woven & Welded ConstructionChoose woven wire mesh for controlled openings or welded mesh for a rigid, fixed grid.
- Weave-Specific SpecificationsCompare square mesh by count and aperture; specify Dutch filter cloth by separate warp and weft counts and wire diameters.

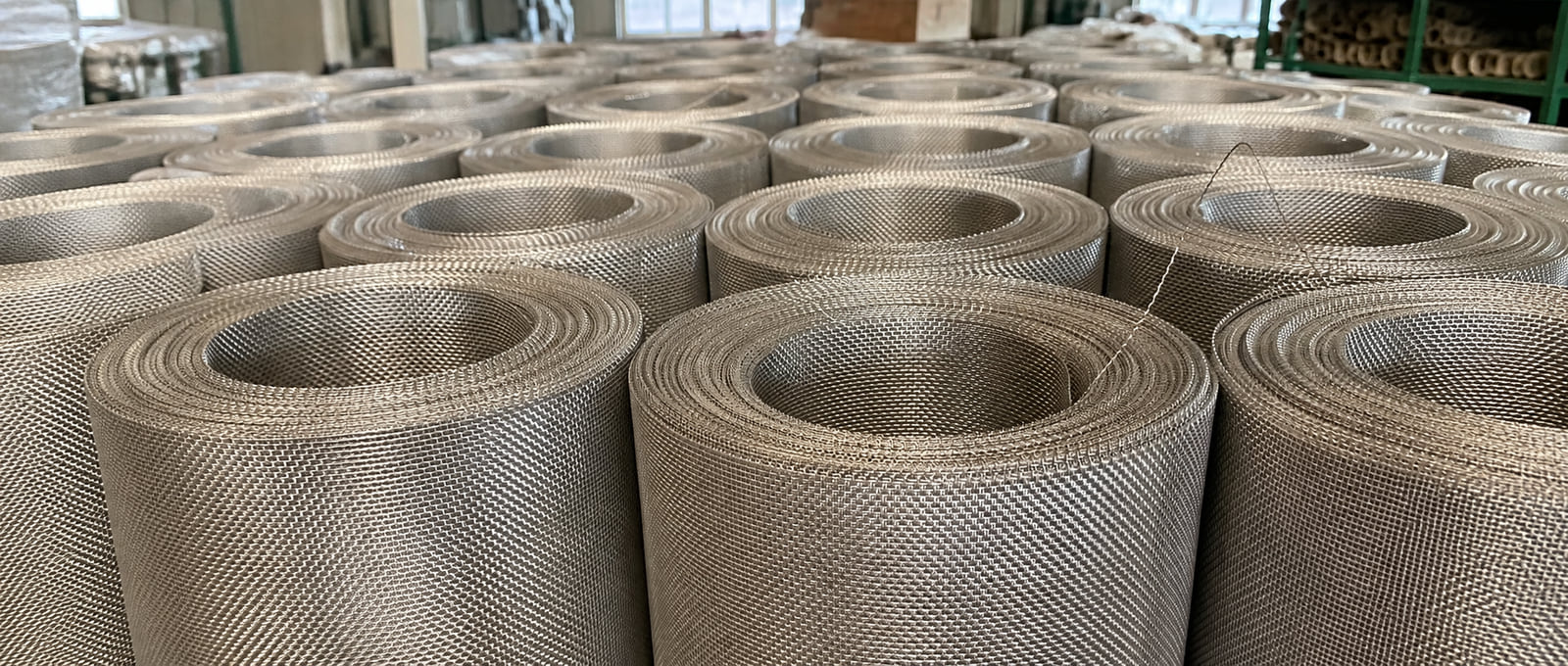

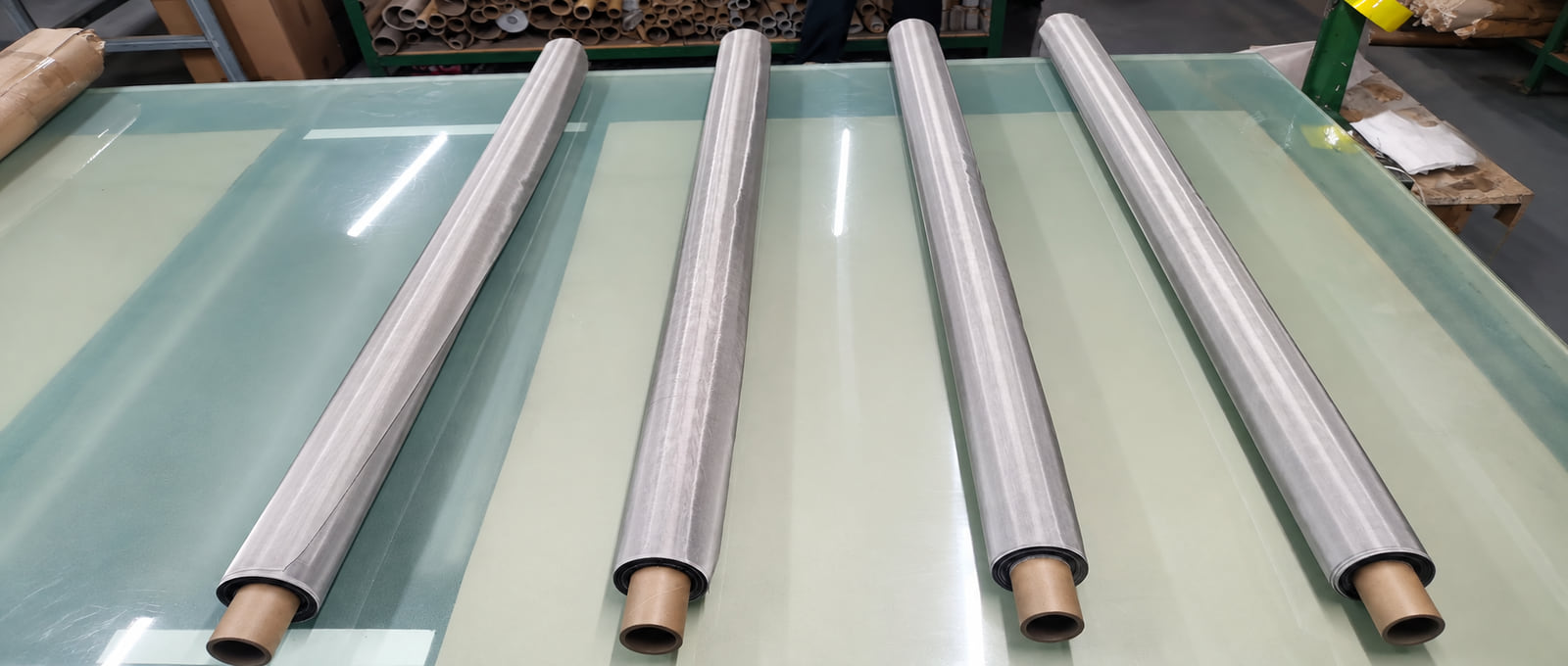

- Rolls, Sheets & ScreensSupply can be evaluated as full rolls, slit rolls, cut sheets, screens and fabricated parts.
- Wholesale Factory SupplyProduction, inspection, labeling and export packing are aligned to the purchase specification.
Fast technical selection
304 Stainless Steel Wire Mesh Specifications
Use these SS304 square-woven combinations as a starting point for 304 stainless steel wire mesh selection. The table includes common 5 mesh, 120 mesh and fine 200 mesh references; it is not a stock list. Confirm material designation, weave, wire diameter, nominal opening, roll or sheet dimensions and tolerances for each inquiry.
| Mesh count | Wire dia. | Opening | Material | Typical construction | |
|---|---|---|---|---|---|
| 4 × 4 Mesh | 1.194 mm | 5.156 mm | SS304 / T304 | Plain weave / crimped | |
| 5 × 5 Mesh | 1.000 mm | 4.080 mm | SS304 / T304 | Plain weave / crimped | |
| 6 × 6 Mesh | 0.889 mm | 3.344 mm | SS304 / T304 | Plain weave / crimped | |
| 8 × 8 Mesh | 0.711 mm | 2.464 mm | SS304 / T304 | Plain weave | |
| 10 × 10 Mesh | 0.635 mm | 1.905 mm | SS304 / T304 | Plain weave | |
| 20 × 20 Mesh | 0.406 mm | 0.864 mm | SS304 / T304 | Plain weave | |
| 30 × 30 Mesh | 0.305 mm | 0.542 mm | SS304 / T304 | Plain weave | |
| 40 × 40 Mesh | 0.254 mm | 0.381 mm | SS304 / T304 | Plain weave | |
| 50 × 50 Mesh | 0.229 mm | 0.279 mm | SS304 / T304 | Plain weave | |
| 60 × 60 Mesh | 0.191 mm | 0.232 mm | SS304 / T304 | Plain weave | |
| 80 × 80 Mesh | 0.140 mm | 0.178 mm | SS304 / T304 | Plain weave | |
| 100 × 100 Mesh | 0.114 mm | 0.140 mm | SS304 / T304 | Plain weave | |
| 120 × 120 Mesh | 0.094 mm | 0.118 mm | SS304 / T304 | Plain weave | |
| 150 × 150 Mesh | 0.066 mm | 0.103 mm | SS304 / T304 | Plain weave | |
| 200 × 200 Mesh | 0.053 mm | 0.074 mm | SS304 / T304 | Plain weave |
Nominal opening: calculated for square mesh as 25.4 ÷ mesh count − wire diameter. Actual dimensions and tolerances must be confirmed for each order.
Dutch weave uses different warp and weft constructions and is quoted separately.
Specify Mesh Count by Weave Construction
For equal-count square mesh, the two directions have matching counts, such as 20 × 20 mesh. Dutch and reverse Dutch filter cloth need separate warp and weft counts and wire diameters. A single mesh number does not define their construction or filtration rating.
- Square-weave references
- Selected 4 × 4 to 200 × 200 mesh references; specify warp and weft counts per inch and wire diameters. Custom combinations require confirmation. Compare square-weave sizes and photos →
- Dutch weave specification
- Specify warp × weft counts per inch and each wire diameter, such as the published 20 × 150 plain Dutch or 20 × 250 twill Dutch references. Filtration ratings require product-specific test data; availability is confirmed separately. Review Dutch weave reference combinations →
- Reverse Dutch weave specification
- Specify warp × weft counts per inch and each wire diameter, such as the published 66 × 18 reverse plain Dutch reference. Confirm the complete construction, filtration test requirements and roll or belt dimensions for an order. Review reverse Dutch weave reference combinations →
Square-weave reference
304 Stainless Steel Woven Wire Mesh Size Chart
The image shows selected 4 to 200 mesh references. Compare wire mesh sizes and SS304 photo labels before confirming the SS304 grade, wire diameter, actual opening, weave and finished dimensions. References are not production limits.
Product range
How to Specify 304 Stainless Steel Wire Mesh
A comparable RFQ defines the material designation, construction, mesh dimensions, finished form and commercial requirements together.Confirm SS304, T304 or 304L
304 and T304 are commonly used purchasing designations for Type 304. Specify 304L separately when a low-carbon grade or welding-related documentation is required.
Choose Woven or Welded Mesh
Choose 304 stainless steel woven wire mesh for controlled openings and filtration. Choose welded mesh when fixed intersections and a rigid grid are central to the application.
Define Mesh Count and Wire
Provide mesh count and wire diameter together, or state the required clear opening. A 120 mesh or 200 mesh specification is incomplete without the wire diameter and weave.
Confirm Finished Supply Form
Add roll width and length, sheet or screen dimensions, edge condition, quantity, packing, destination and any fabrication drawing.
Technical foundation
What Is 304 Stainless Steel Wire Mesh?
304 stainless steel wire mesh is produced from Type 304 stainless steel wire in woven, welded or crimped constructions. It is widely selected for general industrial screening, filtration, sieving, guarding and fabrication because it balances corrosion resistance, formability and procurement cost.
In woven mesh, warp and weft wires interlace to create square openings or dense filtration structures. In welded mesh, intersecting wires are resistance-welded into a fixed grid. Buyers may describe the same material as SS304, Type 304, T304 or stainless steel 304 wire mesh; the purchase specification should state the governing material standard and any required certificate.
A useful quotation request defines the grade, construction, mesh count or opening, wire diameter, width and length or finished part size, quantity and service conditions. Fine 304 stainless wire mesh at 200 mesh needs especially clear wire-diameter, tolerance and handling requirements.
Material selection
SS304, T304 and 304L Material Options
SS304 / Type 304 / T304
These names commonly refer to the same 18-8 austenitic stainless steel grade. State the required standard, chemistry documentation and inspection scope so the order is evaluated against one clear specification.
SS304L
304L stainless steel wire mesh uses the low-carbon variant of 304 and may be requested for welded or fabricated components. Handheld XRF cannot verify the low-carbon suffix, so supporting material documentation or a suitable test method is required.
Explore SS304L →Construction selection
304 Stainless Steel Wire Mesh Weave Types
Plain Weave
Each wire passes alternately over and under the next wire, producing stable square openings for broad industrial use.
Explore Plain Weave →
Twill Weave
Wires pass over and under two adjacent wires, allowing comparatively heavier wire at finer mesh counts.
Explore Twill Weave →
Dutch Weave
Different warp and weft wire arrangements create a dense filtration structure with high mechanical stability.
Explore Dutch Weave →
Reverse Dutch Weave
A reversed wire arrangement combines high flow capacity with fine particle retention for continuous filtration.
Explore Reverse Dutch Weave →
Twilled Dutch Weave
A tightly packed twill structure provides very fine particle retention with a smooth, mechanically stable surface.
Explore Twilled Dutch Weave →
Crimped Wire Mesh
Pre-crimped wires lock together at each intersection to provide rigid, dimensionally stable openings for screening and separation.
Explore Crimped Wire Mesh →Industrial use
Applications
Industrial filtration
Process screens, support layers and filter elements for liquids, gases and bulk materials.
Screening & sieving
304 stainless steel wire mesh screens for grading, separation and equipment protection.
Food processing
Sieves, baskets and screens evaluated against the project’s cleanliness, finish and documentation requirements.
Chemical processing
General process screening where Type 304 is compatible with the actual chemical and temperature exposure.
Guards & enclosures
Welded or heavier woven mesh for machine guards, ventilation screens and protective panels.
OEM fabrication
Cut discs, cylinders, baskets, framed screens and drawing-based mesh components.
Material verification & standards
304 Material Grade Verification
Reliable materialsfor a safer tomorrow
Sample Evidence
SS304 sample

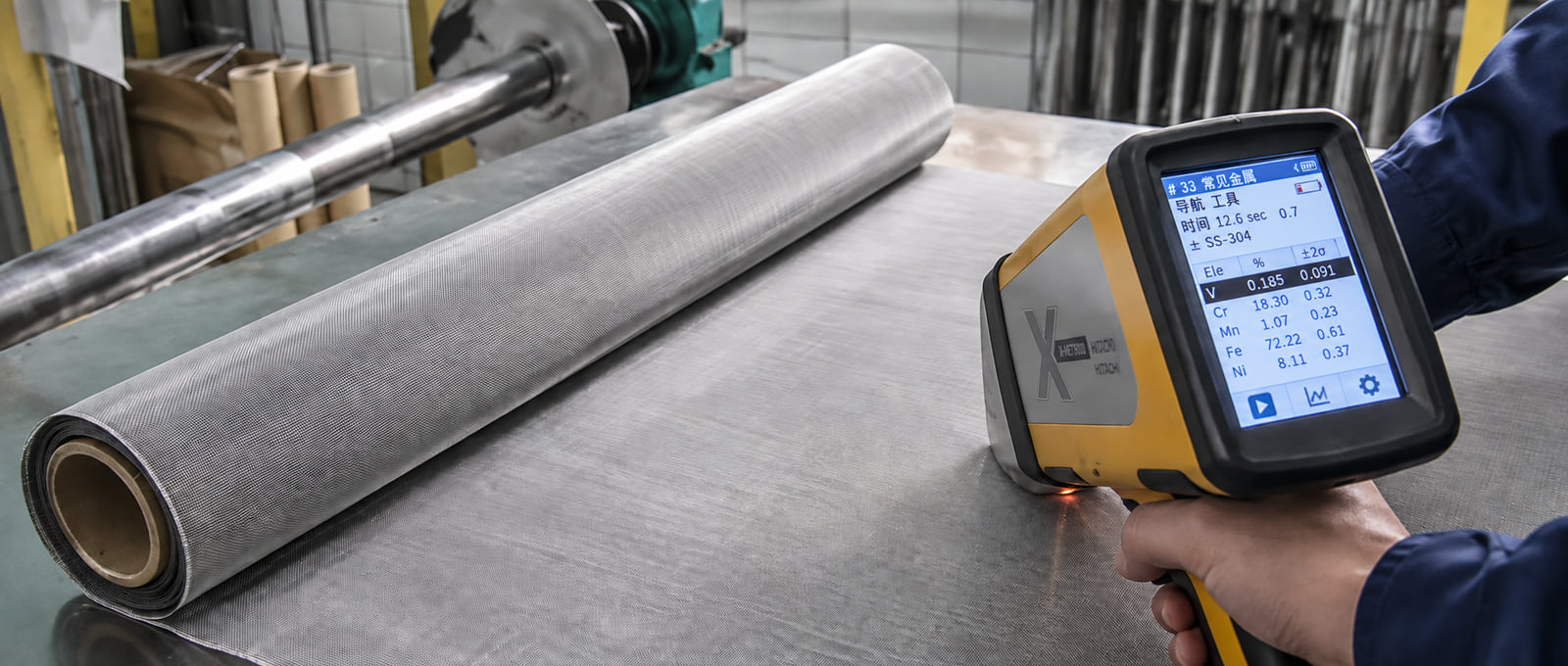

Handheld XRFHandheld XRF alloy identification

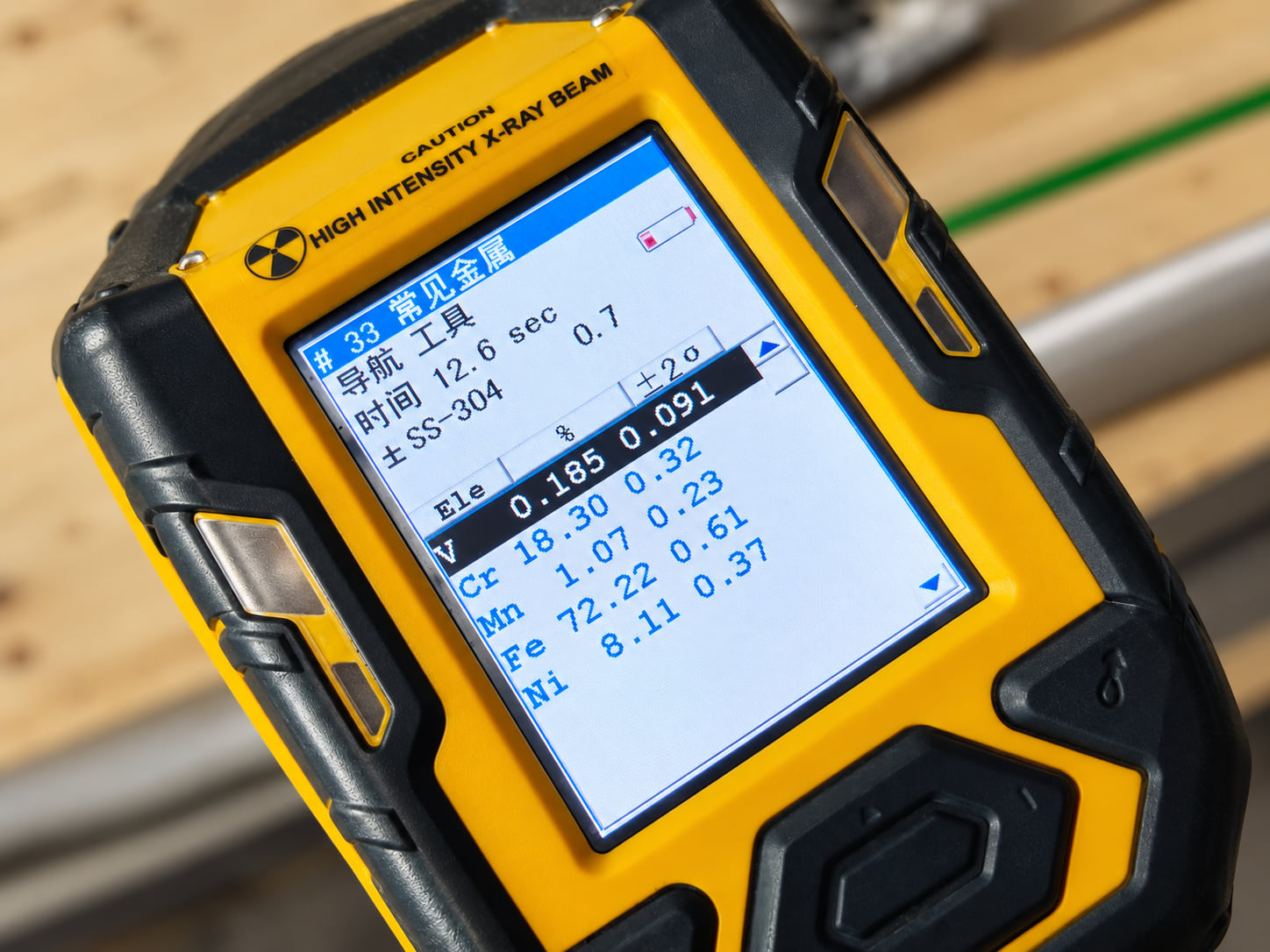

The analyzer screen identifies the inspected stainless steel wire mesh sample as SS304.
- Chromium (Cr)
- 18.30%
- Nickel (Ni)
- 8.11%
This is a sample reading for reference only. Handheld XRF does not verify carbon.
International Grade Reference
Mass Fraction (%)304 chemistry by market standard
Key alloy limits shown as mass %. Equivalent grade names and limits vary slightly by standards system.
| Market | Grade / Standard | C (Max) | Cr | Ni | Reference |
|---|---|---|---|---|---|
| US | Type 304 / UNS S30400 | ≤0.08% | 18.0–20.0% | 8.0–10.5% | ASTM A580/A580M-23 |
| EU | 1.4301 / X5CrNi18-10 | ≤0.07% | 17.5–19.5% | 8.0–10.5% | EN 10088-3:2023 |
| JP | SUS304 | ≤0.08% | 18.0–20.0% | 8.0–10.5% | JIS G 4309:2013 |
| CN | 06Cr19Ni10 / S30408 | ≤0.08% | 18.0–20.0% | 8.0–11.0% | GB/T 4240-2019 |
Visible Cr and Ni readings are within the listed ranges.This supports alloy identification, but does not by itself certify full compliance.
Confirm the required edition and product-form standard for wire, woven mesh or welded mesh before production.
Production workflow
Manufacturing & Quality Control
Material and wire confirmation
Confirm SS304 or 304L, the applicable material standard, wire diameter and documentation requirements.
Weaving or welding
Set the selected woven construction or welded grid dimensions for the required opening and finished width.
Inspection and finishing
Check mesh count or pitch, wire diameter, opening and surface, then slit, cut or fabricate as specified.
Identification and packing
Label finished goods by material and specification, then prepare export packing for the agreed supply form.
Inspection checkpoints
- Material identification and document review
- Mesh count, pitch or aperture inspection
- Wire diameter measurement
- Width, length and finished-size confirmation
- Surface, edge and construction review
- Packing and specification-label verification
OEM flexibility
Custom Manufacturing
As a wholesale SS304 stainless steel wire mesh factory, YueChu reviews production against the full technical and commercial requirement rather than limiting buyers to catalogue roll sizes. Send a target specification, sample or drawing for feasibility review.
- Custom mesh count and wire diameter combinations
- Custom roll width, roll length and slit rolls
- Sheets, strips, screens and cut-to-size pieces
- Discs, tubes, baskets and fabricated filter parts
- Welded panels, frames and drawing-based assemblies
- Private labeling and export packing requirements
Export preparation
Packing & Export
Packing is selected according to mesh fineness, roll dimensions, cut or fabricated form and transport method. Fine mesh requires suitable support and protection against edge damage and crushing.
- Moisture-resistant inner wrapping
- Protective paper tubes, cores or rigid support
- Crates or reinforced export cases
- Specification labels and packing lists
- Custom pallet and handling instructions
Procurement checklist
How to Request an Accurate Quote
- 1
Name the material requirement
Specify SS304, Type 304, T304 or 304L and identify the governing standard and material documentation required for the order.
- 2
Define the mesh construction
State woven, welded or crimped construction. For woven mesh, include plain, twill, Dutch or another required weave.
- 3
Define the opening and wire
Provide mesh count and wire diameter, clear opening, or a target filtration requirement with process details.
- 4
Add dimensions and commercial details
Confirm roll, sheet, screen or part dimensions, quantity, destination, packing, delivery target and inspection requirements.
Buyer questions
304 Stainless Steel Wire Mesh FAQ
Are SS304, Type 304 and T304 stainless steel wire mesh the same?
They are commonly used as equivalent purchasing names for Type 304 stainless steel wire mesh. Because naming conventions can vary, the order should still identify the required material standard, chemistry documentation and inspection scope.
What is the difference between 304 and 304L stainless steel wire mesh?
304L is the low-carbon variant of 304 and is often considered for welded or fabricated components. Handheld XRF can screen alloying elements but cannot confirm the low-carbon suffix, so 304L should be supported by appropriate material documents or carbon-capable testing when required.
Can you supply 304 stainless steel woven wire mesh in 5 mesh?
5 mesh 304 stainless steel woven wire can be reviewed as a custom square-opening specification. State the wire diameter, required opening, roll or sheet dimensions, edge condition and quantity; mesh count alone does not fully define the product.
Can you supply 304 stainless steel woven wire in 120 mesh?
Yes, 120 mesh is included as a common square-woven reference. Confirm the wire diameter, nominal opening, weave, width, length and tolerance because different wire diameters produce different openings at the same mesh count.
What should I specify for 304 stainless fine wire mesh at 200 mesh?
For 200 mesh, specify the material, weave, wire diameter, nominal opening, roll width and length, quantity, edge requirement and application. Fine mesh handling, packing and dimensional tolerance should also be agreed before production.
Is 304 stainless steel wire mesh suitable for a screen or sieve?
304 stainless steel wire mesh screens are widely used for general industrial screening and sieving when Type 304 is compatible with the environment. Select the mesh count, opening, wire diameter and construction against the particle size, load, cleaning method and corrosion exposure.
When should I choose 316 instead of 304 wire mesh?
316 contains molybdenum and is generally evaluated where chloride exposure or a more demanding chemical environment requires improved corrosion resistance. Final grade selection should be based on the actual medium, concentration, temperature, cleaning cycle and service life target.
What information does a wholesale 304 wire mesh factory need for a quote?
Provide the material designation, woven or welded construction, mesh count or opening, wire diameter, dimensions, supply form, quantity, destination, required documents, packing and delivery target. A drawing is recommended for fabricated screens or OEM parts.
- Materials
- SS304 / T304; SS304L on request
- Constructions
- Woven, welded and crimped wire mesh
- Square-weave references
- Selected 4 × 4 to 200 × 200 mesh combinations
- Supply form
- Rolls, sheets, screens, cut pieces and custom parts
Made to your specification · Request a quotation
Technical DataProduct parameters & construction details
- Product code
- YC-SS304-MESH-001
- Materials
- SS304 / T304; SS304L on request
- Constructions
- Woven, welded and crimped wire mesh
- Square-weave references
- Selected 4 × 4 to 200 × 200 mesh combinations
- Dutch / reverse Dutch
- Separate warp × weft counts and wire diameters
- Wire diameter
- Selected with mesh count, opening and construction
- Supply form
- Rolls, sheets, screens, cut pieces and custom parts
