Custom Flattened Expanded Metal Supply
Smooth-surface expanded metal for guards, shelves, panels, and fabrication
We supply flattened expanded metal in carbon steel, galvanized steel, stainless steel, and aluminum with custom openings, sheet sizes, edge conditions, finishes, and export packing.
What Is Flattened Expanded Metal?
Flattened expanded metal is raised expanded metal that has been cold rolled to create a smoother, flatter, and more level surface. The rolling process reduces the overall thickness while retaining the continuous one-piece mesh structure.
It is often selected where easier fabrication, improved appearance, a smoother contact surface, or more consistent panel thickness is required for guards, shelves, screens, panels, and fabricated components.
- Smoother surface for handling and secondary fabrication.
- More uniform thickness and flatter appearance than raised mesh.
- Available in multiple metals, opening patterns, and finishes.
- Suitable for guards, shelves, screens, panels, and partitions.
Benefits of Flattened Expanded Metal
Flattened expanded metal offers a smoother surface, easier cutting and forming, improved appearance, uniform panel thickness, and practical installation for guards, shelves, screens, fabricated parts, and visible panel work.
Applications of Flattened Expanded Metal
Common applications include flattened expanded metal for machine guards, flattened expanded metal panels for shelves and partition infill, smooth surface expanded metal for decorative screens, and fabricated sheets for filters, ceiling details, and architectural cladding projects.

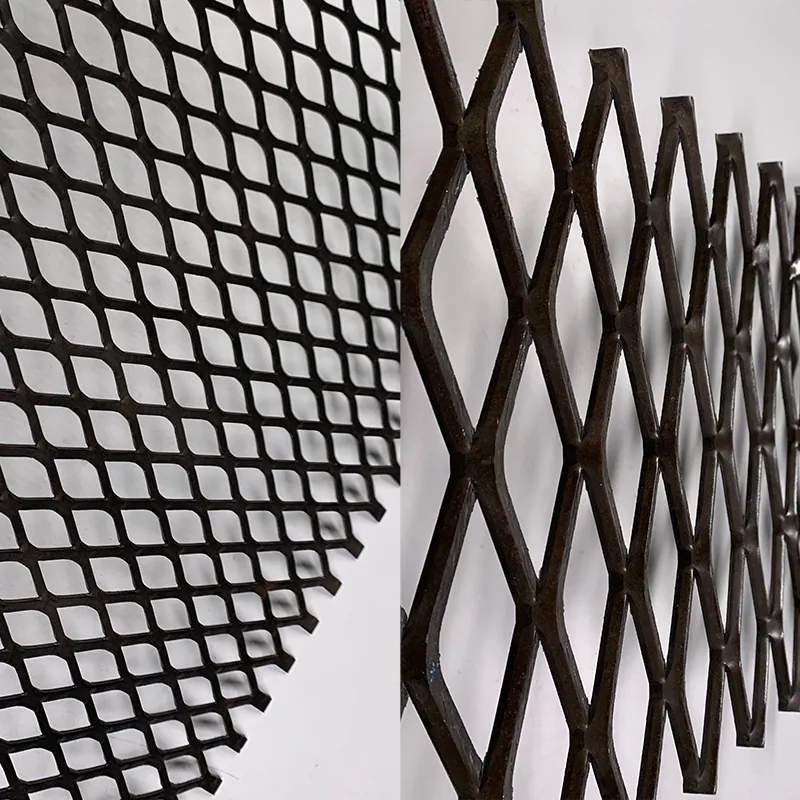

Flattened vs. Raised Expanded Metal
Raised expanded metal keeps a three-dimensional profile for rigidity and traction, while flattened expanded metal is cold rolled to create a smoother surface and lower profile. Buyers usually choose flattened expanded metal sheet products when fabrication, handling, finishing quality, or visible panel appearance matters more than added traction.
Flattened Expanded Metal Measurement Guide
For accurate quotation and production, expanded metal mesh should be measured by SWD (Short Way of Diamond), LWD (Long Way of Diamond), strand width, sheet thickness, sheet width, and sheet length. These expanded metal mesh specifications directly affect opening size, weight, strength, ventilation rate, and application performance.
When sending an inquiry for flattened expanded metal, it is recommended to provide the parameters below for faster quotation and production.
- TL / SWD: Short way of the mesh opening.
- TB / LWD: Long way of the mesh opening.
- d: Sheet thickness of the original metal plate.
- b: Strand width of the metal rib.
- B: Overall sheet width.
- L: Overall sheet length.
Available Materials and Surface Finishes
This flattened expanded metal sheet range supports custom opening size, strand width, thickness, sheet dimensions, edge condition, surface finish, and export packing for project and bulk orders.
| Product | Flattened Expanded Metal / Flattened Expanded Metal Sheet |
|---|---|
| Materials | Carbon Steel / Galvanized Steel / Stainless Steel / Aluminum |
| Opening Pattern | Diamond opening for flattened expanded metal sheet panels |
| Surface Finish | Mill finish / Hot-dip galvanized / Anodized / Powder coated |
| Custom Options | Opening size / Strand width / Thickness / Sheet size / Edge treatment |
| Supply Form | Sheets / Panels / Cut-to-size pieces / Fabricated components |
Product Gallery

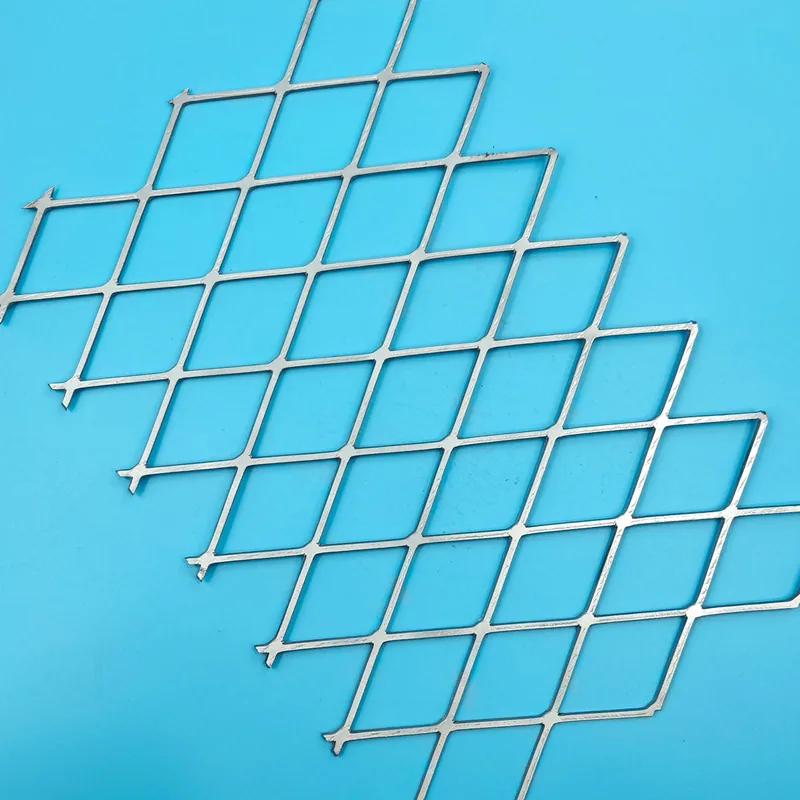

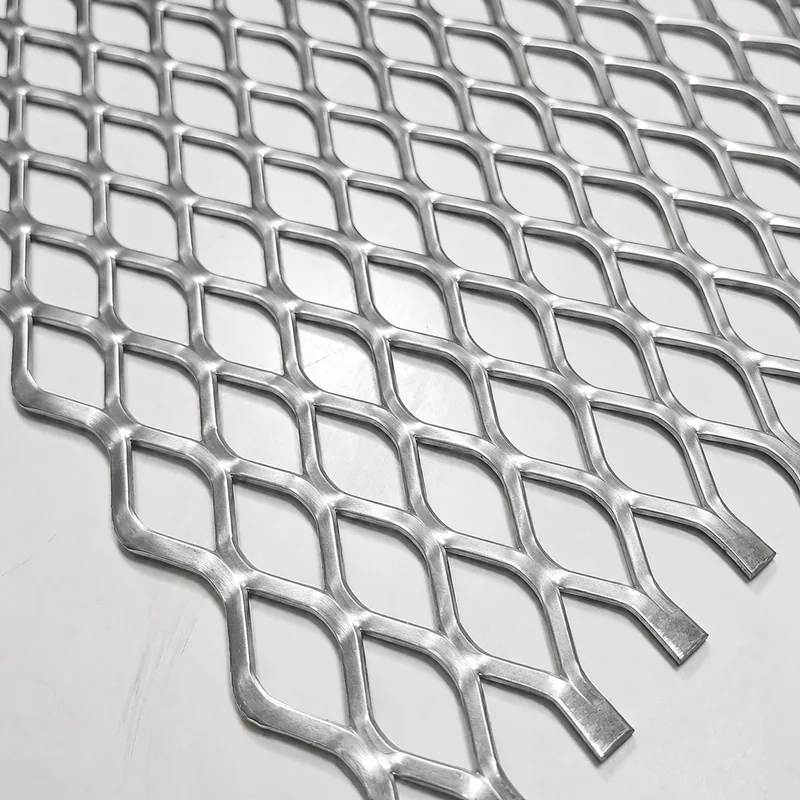

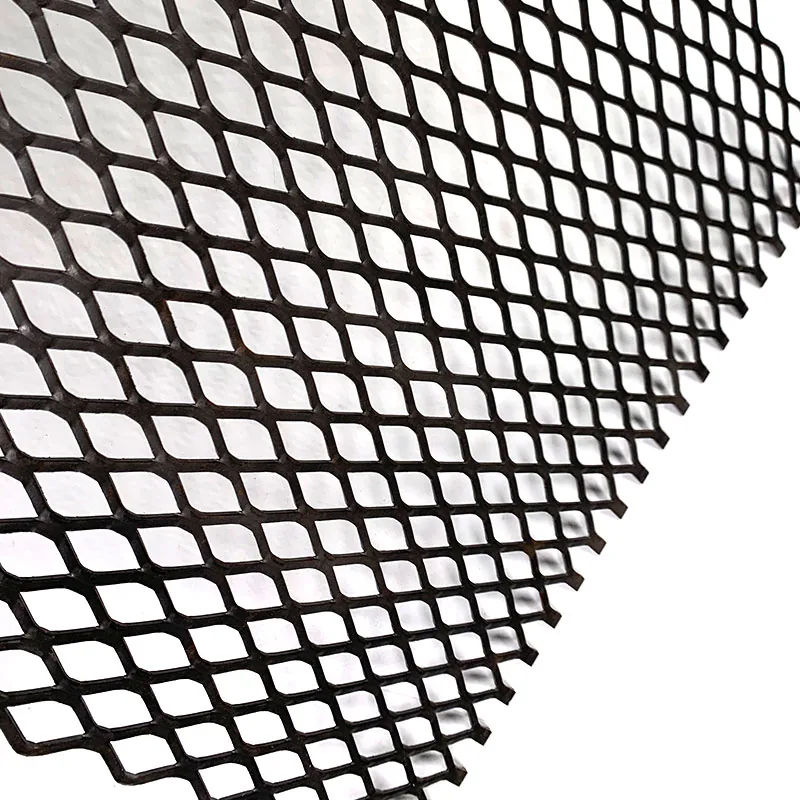

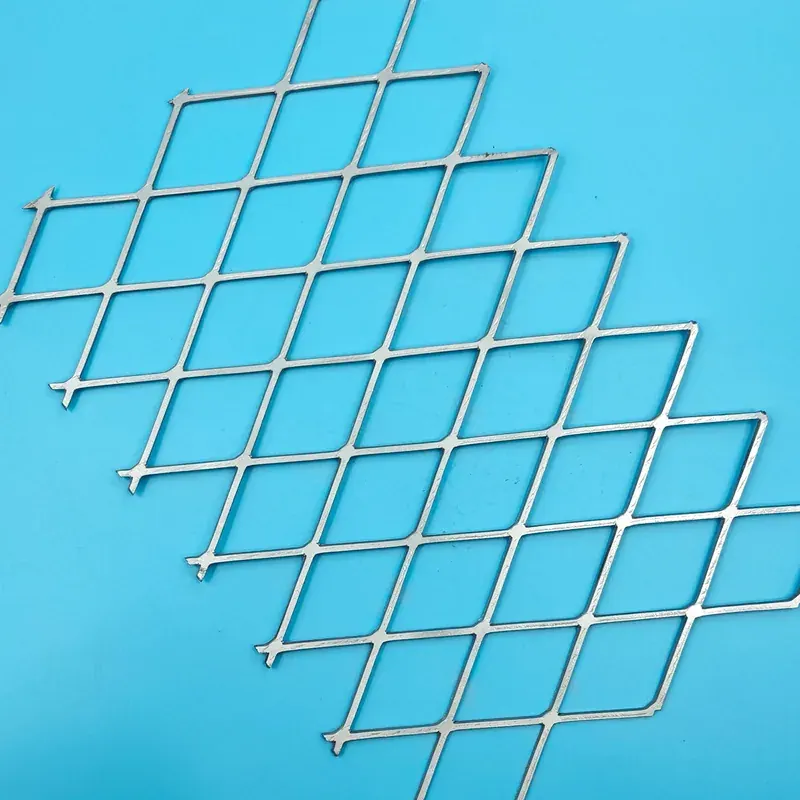

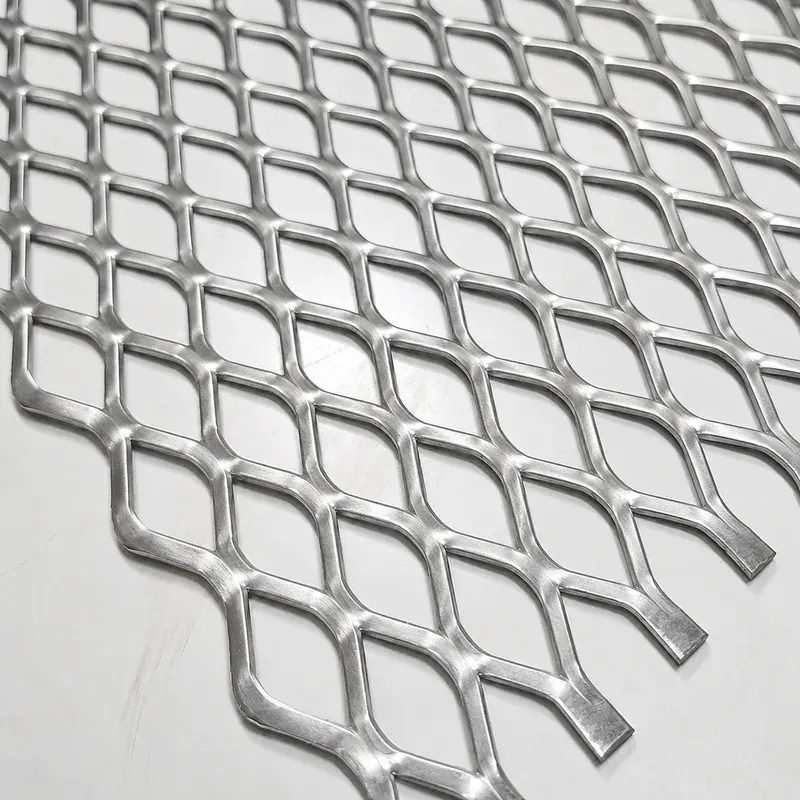

Browse flattened expanded metal examples including standard steel sheets, stainless steel type, raised versus flattened comparison, and joint detail. Custom materials, opening sizes, and finishes are available on request.
Custom Flattened Expanded Metal Specifications
We support custom flattened expanded metal based on drawings, samples, finished component requirements, and project specifications. Buyers can select material, opening size, strand width, thickness, sheet dimensions, edge condition, and finish.
- Carbon steel, galvanized steel, stainless steel, and aluminum options.
- Custom smooth-surface patterns for guards, shelves, panels, and screens.
- Mill finish, galvanized, anodized, and powder coated surface options.
- Export-ready packing for sheets, fabricated panels, and project orders.
Flattened Expanded Metal FAQ
What is flattened expanded metal?
Flattened expanded metal is raised expanded metal that has been cold rolled to create a smoother, flatter surface and more uniform panel thickness while retaining a continuous one-piece mesh structure.
What are the advantages of flattened expanded metal?
Its advantages include a smoother surface, easier fabrication, improved appearance, consistent panel thickness, and suitability for guards, shelves, screens, panels, and fabricated components.
What is the difference between raised and flattened expanded metal?
Raised expanded metal has a three-dimensional profile that provides rigidity and traction. Flattened expanded metal is rolled after expanding to create a smoother surface and lower profile for fabrication and visible panels.
What materials are available?
Flattened expanded metal can be supplied in carbon steel, galvanized steel, stainless steel, and aluminum, with mill finish, galvanized, anodized, or powder coated options depending on the material.
What information is needed for a quotation?
Please send the material, thickness, SWD, LWD, strand width, sheet dimensions, finish, quantity, application, and destination port. Drawings or samples help us quote accurately.
